Next gen lighting technologies - voxelised, traced, and everything else *spawn*

Discussion in 'Rendering Technology and APIs' started by Scott_Arm, Aug 21, 2018.

  1. Shifty Geezer

    Shifty Geezer uber-Troll!
    Moderator Legend

    Joined:
    Dec 7, 2004
    Messages:
    40,606
    Likes Received:
    11,033
    Location:
    Under my bridge
    pharma and DavidGraham like this.
  2. JoeJ

    Regular Newcomer

    Joined:
    Apr 1, 2018
    Messages:
    419
    Likes Received:
    485
    New Seus Minecraft Video:

    Lots of specular added, and operating switches reveals the temporal lag. Beautiful :)

  3. Shifty Geezer

    Shifty Geezer uber-Troll!
    Moderator Legend

    Joined:
    Dec 7, 2004
    Messages:
    40,606
    Likes Received:
    11,033
    Location:
    Under my bridge
    Indeed. That's the difference in appearance between old-style games and what we'd expect in a next-gen look. Although not too dissimilar from The Tomorrow Children - that game really was ahead of the curve!
    The materials could use tweaking though. The plasticness of the 'grassy' ground is unwarranted.

  4. Dictator

    Newcomer

    Joined:
    Feb 11, 2011
    Messages:
    118
    Likes Received:
    272
    Very different way it works though from what I have asked so far!
    By the way - anyone have any easily digestible questions for the author of that minecraft grouping of RT shaders? We are doing a more light-hearted video on it.

    JoeJ and pharma like this.
  5. JoeJ

    Regular Newcomer

    Joined:
    Apr 1, 2018
    Messages:
    419
    Likes Received:
    485
    I'd like to know those things:
    At what resolution relative to a voxel is the GI calculated, and does it decrease at distance? (Likely 'GI' is better term than 'Irradiance' or 'Incoming light'? Although the term GI is only loosely defined but mostly reduced reduced to diffuse interreflection)
    Does specular denoising happen in screenspace or texture space?

    I think you should mention advantages of 'infinite bounces' and 'any lightsource contributes / casts shadows' (if true).
    The bounces thing is most remarkable here - i've never seen this in realtime before. People should know this to develop a better understanding about GI.

  6. Jupiter

    Veteran Newcomer

    Joined:
    Feb 24, 2015
    Messages:
    1,391
    Likes Received:
    921
    Shadow maps are mostly very basic in games. In my opinion Raytracing shadows are the only performant solution which can fix this. Achieving this quality and depth with shadow maps would be much more expensive.

  7. keldor

    Newcomer

    Joined:
    Dec 22, 2011
    Messages:
    74
    Likes Received:
    107
    The problem is that with shadow maps, you basically have to render a depth cubemap (if you want the light to cast shadows in all directions - sunlight doesn't need this) for every single light source. There really just isn't any good way to do this while maintaining both quality and speed, not to mention memory consumption.

    Ray tracing has the opposite problem in that for a given pixel, you must cast a ray toward every light source that might cast a shadow there. Though at least for this case, you can do culling and only look for shadows from a small set of nearby or very bright lights.

    Shadow maps have no such culling. Yes, you can avoid shadow map lookups for distant lights when shading, but you still have to generate the darn things for every single light that can cast shadows anywhere in the visible scene.

    At some level of detail, ray tracing passes shadow maps in terms of performance.

    eloyc, pharma, iroboto and 1 other person like this.
  8. OCASM

    Regular Newcomer

    Joined:
    Nov 12, 2016
    Messages:
    922
    Likes Received:
    881


    And that's without taking softness into consideration.

    jlippo, pharma, iroboto and 3 others like this.
  9. MfA

    MfA
    Legend

    Joined:
    Feb 6, 2002
    Messages:
    6,764
    Likes Received:
    470
    Generally, but there is nothing really stopping you with irregular z-buffers ... just don't transform those pixels to the light's point of view.

    Irregular z-buffer rendering is just a form parallel raytracing and in ideal circumstances the more optimal algorithm for parallel or diverging rays than more traditional forms of parallel raytracing (you throw the BVH and tris at rays, instead of throwing rays at the BVH and tris). The main limitation is lack of finegrained control over the command buffer to allow GPU side occlusion culling (and on the fly animation and tesselation).

    #1629 MfA, Apr 3, 2019
    Last edited: Apr 3, 2019
  10. Jupiter

    Veteran Newcomer

    Joined:
    Feb 24, 2015
    Messages:
    1,391
    Likes Received:
    921
  11. Dictator

    Newcomer

    Joined:
    Feb 11, 2011
    Messages:
    118
    Likes Received:
    272

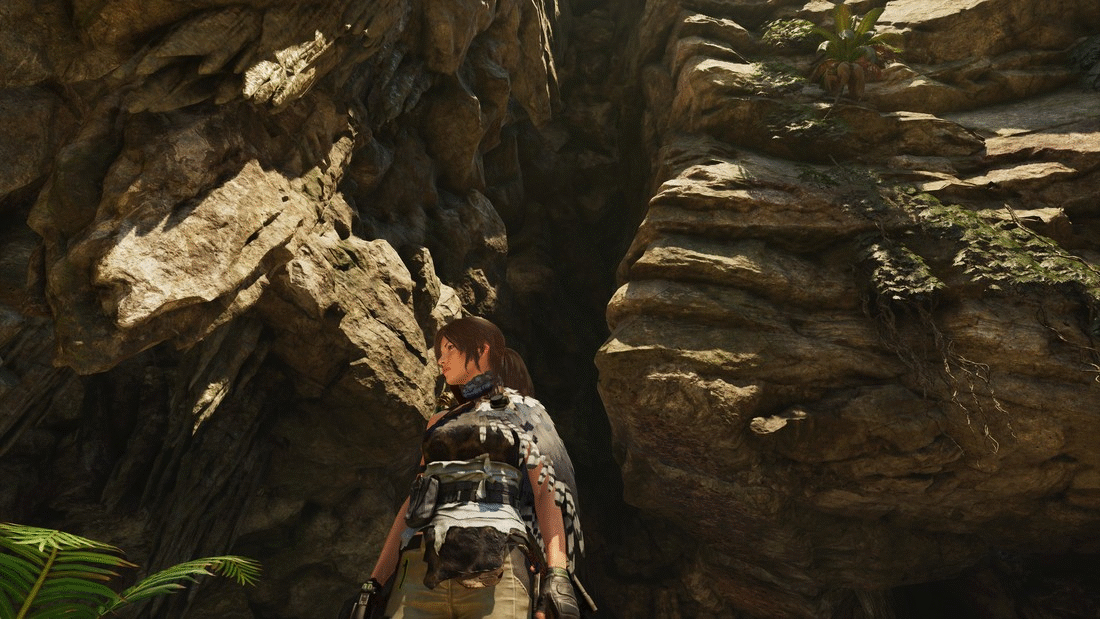

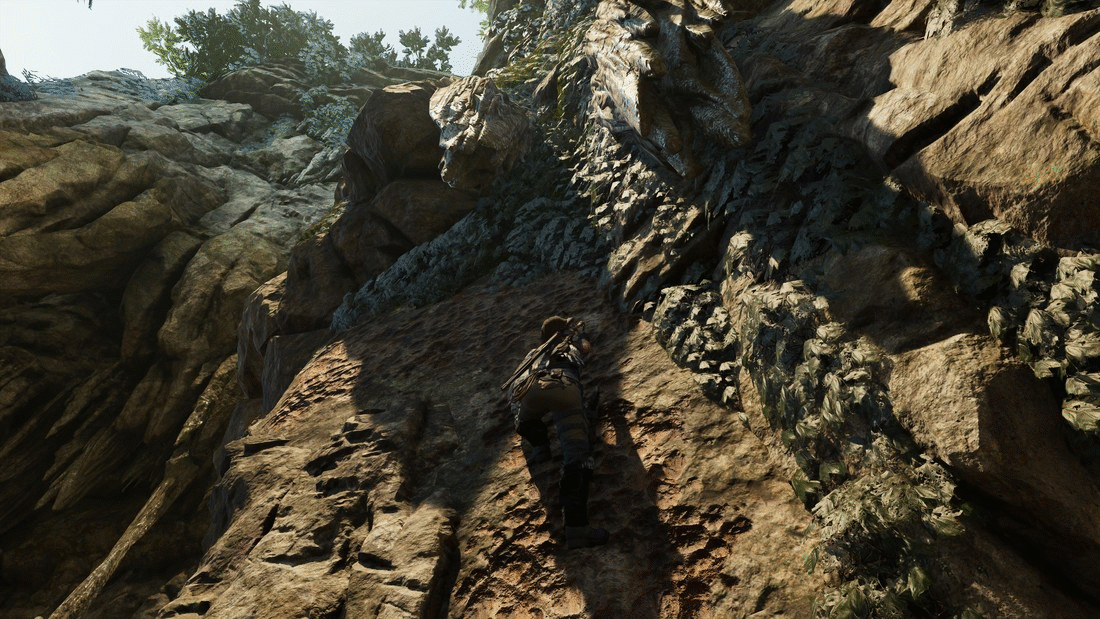

    I found how good they look is very much so dependent on the actual asset... and partially the time of day setting/distance and type of light hitting the asset. Since the shadows attenuate with umbra/penumbra, they honestly look a bit awkward in moments where there is scarcely a difference between umbra and penumbra. Just hard, overlapping simplistic transparency shadows. Maybe that scene has some strange time of day setting making them hard edged? Other scenes they look quite great:

    Shadow maps:
    [​IMG]

    Ultra transparency shadows:
    [​IMG]

    Shadow maps:
    [​IMG]

    Ultra transparency shadows:
    [​IMG]

    Shadow maps:
    [​IMG]

    Ultra Transparency Shadows:
    [​IMG]

    Once again - for every one instance where something can look less than perfect, there are many more where it does in fact look quite a bit better.

    #1632 Dictator, Apr 3, 2019
    Last edited: Apr 3, 2019
    pharma, iroboto, PSman1700 and 4 others like this.
  12. Shifty Geezer

    Shifty Geezer uber-Troll!
    Moderator Legend

    Joined:
    Dec 7, 2004
    Messages:
    40,606
    Likes Received:
    11,033
    Location:
    Under my bridge
    Again, that's properly next-gen.
    The gains vastly outweight the losses. Object composition is significantly more grounded all round. The proper shadowing in this example fixes the 'gamey' look, which is caused by inconsistent lighting breaking expectations.
    https://i.postimg.cc/QMxW0z1r/Webp-net-gifmaker-7.gif

  13. AlBran

    AlBran Ferro-Fibrous
    Moderator Legend

    Joined:
    Feb 29, 2004
    Messages:
    20,661
    Likes Received:
    5,759
    Location:
    ಠ_ಠ
    Perhaps it would be less of a problem once devs keep those errant cases in mind although... more dev time needed then?

    Bug Number: “remove offending objects entirely” :V

  14. iroboto

    iroboto Daft Funk
    Legend Regular Subscriber

    Joined:
    Mar 6, 2014
    Messages:
    7,781
    Likes Received:
    6,067
    For a bolt on? After a title shipped? It’s pretty nuts they went as far as they did I suppose. Where games are built ground up with DXR in mind, the discussion is going to be interesting.

    On a related topic, BioWare and frostbyte, they indicated it took 24 hrs to bake lighting. If they focus on building everything with DXR and bake everything at the end, I think there are some cycles that can be saved. Has to be better than baking, and later changing and baking again. Etc.

    milk, OCASM and Shifty Geezer like this.
  15. AlBran

    AlBran Ferro-Fibrous
    Moderator Legend

    Joined:
    Feb 29, 2004
    Messages:
    20,661
    Likes Received:
    5,759
    Location:
    ಠ_ಠ
    It's not a little amusing that baking time was something that also plagued Destiny's iteration times (in the context of BioWare supposedly not even analyzing Destiny. >_> )

    :|

    OCASM likes this.
  16. Scott_Arm

    Legend

    Joined:
    Jun 16, 2004
    Messages:
    13,236
    Likes Received:
    3,686
    If 24 hours is too long to bake lighting for a semi-open world map, then why wasn't that identified early, and why wasn't that part of the tooling optimized? Baking lights is typically an hours long process, from what I understand. It can't be the case that the tools can't be optimized. If baking lights takes astronomically longer than industry standards from Unreal, or other studio engines, then why not fix it early when your design concept revolves around a large planet that could be explored (the original concept). If I paid someone to build me a house, and it ended up being a huge piece of shit and I called out the contractors for the poor job they did, their explanation better not be that they didn't have the right tools.

    milk likes this.
  17. PSman1700

    Newcomer

    Joined:
    Mar 22, 2019
    Messages:
    98
    Likes Received:
    24
    That's really impressive, it is indeed next-gen. It's resource hungry though, fps from 60+ to 30+ in you're case. What GPU are you running?
    Can't wait for games build with DXR from the ground up!

    OCASM likes this.
  18. OCASM

    Regular Newcomer

    Joined:
    Nov 12, 2016
    Messages:
    922
    Likes Received:
    881
  19. DavidGraham

    Veteran

    Joined:
    Dec 22, 2009
    Messages:
    2,749
    Likes Received:
    2,517
    NVIDIA gave PCGH an updated version of their StarWars demo that uses DX12 and runs on Pascal too. PCGH tested Pascal GPUs @1440p native, versus Turing GPUs @2160p/DLSS. Which means Turing is at a moderate disadvantage here, as DLSS still incurs a performance loss even though it actually renders @1440p.

    TitanXP: 11 fps
    Titan RTX: 36 fps

    1080Ti: 11 fps
    2060: 17 fps
    2070: 21 fps
    2080: 27 fps
    2080Ti: 35 fps

    http://www.pcgameshardware.de/Nvidi...pecials/Pascal-Raytracing-Benchmarks-1278592/

    Heinrich4, pharma and OCASM like this.
