AMD: Pirate Islands (R* 3** series) Speculation/Rumor Thread

Discussion in 'Architecture and Products' started by iMacmatician, Apr 10, 2014.

Tags:
  1. Kaotik

    Kaotik Drunk Member
    Legend

    Joined:
    Apr 16, 2003
    Messages:
    8,183
    Likes Received:
    1,840
    Location:
    Finland
    Apparently they're "HardWare Schedulers"

  2. Gipsel

    Veteran

    Joined:
    Jan 4, 2010
    Messages:
    1,620
    Likes Received:
    264
    Location:
    Hamburg, Germany
    Apparently? Does someone here have seen the full presentation where this may be elaborated? And also how it works?

  3. Nemo

    Newcomer

    Joined:
    Sep 15, 2012
    Messages:
    125
    Likes Received:
    23
  4. Kaotik

    Kaotik Drunk Member
    Legend

    Joined:
    Apr 16, 2003
    Messages:
    8,183
    Likes Received:
    1,840
    Location:
    Finland
    The info comes from The Stilt at Muropaketti/MuroBBS, no idea where he gets his info from but seems to have legit and deep knowledge especially on AMD products (also has the CPU clock frequency world record, http://hwbot.org/submission/ 2615355 )

    Lightman likes this.
  5. 3dilettante

    Legend Alpha

    Joined:
    Sep 15, 2003
    Messages:
    8,122
    Likes Received:
    2,873
    Location:
    Well within 3d

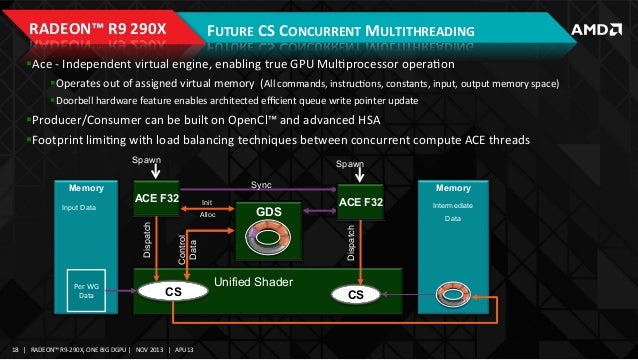

    There is a HWS, or hardware scheduling mode mentioned for managing compute in the AMD HSA Linux kernel driver.
    AMD might indicate whether that is coincidental at some point.
    The naming similarity may point to it being a path where the hardware has more autonomy in how it receives commands or schedules work.

  6. CarstenS

    Veteran Subscriber

    Joined:
    May 31, 2002
    Messages:
    4,798
    Likes Received:
    2,056
    Location:
    Germany
    There is another difference - and i think that is what you're missing here:
    With a heat pipe, you take the heat from one point of the card (usually from above the GPU where in case of the Nano the fan's hub would be as well) and transport it to another location in x/y coordinates (when looking straight at the card). With a Vapor Chamber, your main direction of heat transfer would be analogous to the z-axis, i.e. from one side of the VC to the other, in addition to a (less distinct) x/y spread compared to a heat pipe.

    So, you transfer a certain amount of heat directly to where the sun don't shine... err... the air does not flow (as much). That's why on "traditional" cards with Vapor Chambers, there's a large set of fins soldered directly onto it and the (blower type) fan mounted next to the whole construct.

    But since the alleged AMD slide double confirmed a Vapor Chamber, the discussion seems moot. It's only interesting, whether or not the cooling is sufficiently quiet.

    #2726 CarstenS, Aug 26, 2015
    Last edited: Aug 26, 2015
  7. pharma

    Veteran Regular

    Joined:
    Mar 29, 2004
    Messages:
    2,929
    Likes Received:
    1,626
    Is 0xAF now considered optimum for testing gaming performance?

    [​IMG]

  8. Gipsel

    Veteran

    Joined:
    Jan 4, 2010
    Messages:
    1,620
    Likes Received:
    264
    Location:
    Hamburg, Germany
    You have to compromise at 4k. That's no surprise.

    I.S.T. likes this.
  9. Bludd

    Bludd Experiencing A Significant Gravitas Shortfall
    Veteran

    Joined:
    Oct 26, 2003
    Messages:
    3,233
    Likes Received:
    800
    Location:
    Funny, It Worked Last Time...
    IMHO, no AF is a huge compromise and not one worth making. Something else has to go.

    RedVi, Ryan Smith and Alexko like this.
  10. gamervivek

    Regular Newcomer

    Joined:
    Sep 13, 2008
    Messages:
    715
    Likes Received:
    220
    Location:
    india
    Indeed no AF is much worse than having one or two settings turned down from the 'ultra' preset which is rarely good enough to justify the performance loss.

    Such comparisons like the Fury X vs. 980Ti slide only bring scorn upon AMD from those in the know.

  11. CarstenS

    Veteran Subscriber

    Joined:
    May 31, 2002
    Messages:
    4,798
    Likes Received:
    2,056
    Location:
    Germany
    No need for scorn, usually, the Fury X suffers less of a performance hit than a GM200 by going from no AF to 16:1 AF (regardless if it's driver default settings or high quality settings). AMD might only be hurting themselves here.

  12. Dave Baumann

    Dave Baumann Gamerscore Wh...
    Moderator Legend

    Joined:
    Jan 29, 2002
    Messages:
    14,079
    Likes Received:
    648
    Location:
    O Canada!
    I don't know the specifics of this, but 4K resolutions are putting the onus back on graphics horsepower and trade-offs for settings need to be maintained on many solutions. Like [H]'s reviewing principle the guide is to provide the settings that will attain "playable" (~30FPS) at 4K, likely with the primary in-game quality settings being chosen as the less favourable break-point than AA/AF settings. Peoples preference may differ, but you are getting into a more subjective range when you are looking to maintain a minimum playability bar; but this is far more interesting than debating graphs with all details set to the max at stupid 100+FPS's.

  13. Malo

    Malo Yak Mechanicum
    Legend Veteran Subscriber

    Joined:
    Feb 9, 2002
    Messages:
    7,030
    Likes Received:
    3,101
    Location:
    Pennsylvania
    Dave I'm not sure I like you promoting turning off AF in favor of other settings. Perhaps you prefer CA over AF?

  14. Dave Baumann

    Dave Baumann Gamerscore Wh...
    Moderator Legend

    Joined:
    Jan 29, 2002
    Messages:
    14,079
    Likes Received:
    648
    Location:
    O Canada!
    I'm not promoting anything, likewise I can't speak to everyone's preferences - the same goes for a benchmark lab and things would get even more muddy if you start disabling individual graphics settings. In the interest of keeping things normalised as much as possible and for the sake of time you are likely to look at the big buckets that are tweakable on every title - resolution, major game settings buckets (Normal, High, Ultra Quality, etc.) and AA/AF levels.

  15. bridgman

    Newcomer Subscriber

    Joined:
    Dec 1, 2007
    Messages:
    58
    Likes Received:
    102
    Location:
    Toronto-ish
    Same thing. HWS allows some ACEs to be "more equal than others" as Dave said.

    The code operates in one of three modes, selectable via the sched_policy module
    parameter :

    - sched_policy=0 uses a hardware scheduler running in the MEC block within CP,
    and allows oversubscription (more queues than HW slots)
    - sched_policy=1 also uses HW scheduling but does not allow oversubscription, so
    create_queue requests fail when we run out of HW slots
    - sched_policy=2 does not use HW scheduling, so the driver manually assigns
    queues to HW slots by programming registers

    The "no HW scheduling" option is for debug & new hardware bringup only, so has
    less test coverage than the other options. Default in the current code is "HW
    scheduling without oversubscription" since that is where we have the most test
    coverage but we expect to change the default to "HW scheduling with
    oversubscription" after further testing. This effectively removes the HW limit
    on the number of work queues available to applications.

    http://lists.freedesktop.org/archives/dri-devel/2014-July/064011.html

    Kej, Razor1, Lightman and 3 others like this.
  16. 3dilettante

    Legend Alpha

    Joined:
    Sep 15, 2003
    Messages:
    8,122
    Likes Received:
    2,873
    Location:
    Well within 3d
    Thank you for the information.
    It felt like a small number of letters for an unintended name collision, but I couldn't cite anything to back up the assumption.
    I do note that Sea Islands or the APU subset of it receives mention as the starting IP, to give context where HWS may fit in this thread.

  17. gamervivek

    Regular Newcomer

    Joined:
    Sep 13, 2008
    Messages:
    715
    Likes Received:
    220
    Location:
    india
    Interesting, the one recent review pointing out AF hit that I could find was HardOCP's Watch Dogs review where 290X had much greater performance loss than 780Ti which barely budged with 16xAF.

    As for AMD hurting themselves, the other thing conspicuous by its absence was the lack of DSR vs. VSR showdown in various reviews considering they had a slide showing how VSR had negligible performance hit on Fury X. With its abysmal 1080p performance it could have been a saving grace but VSR was nowhere to be found. The funny thing being that nvidia came up with this idea of having a greater resolution on widespread 1080p resolution monitors while AMD had more to gain from it.

  18. silent_guy

    Veteran Subscriber

    Joined:
    Mar 7, 2006
    Messages:
    3,754
    Likes Received:
    1,379
    It was just the opposite, AFAIK.
    At least for the 290X, it was the cause for people getting upset because it often did not reach that number, while Nvidia always specifies a minimum speed and a boost clock that isn't guaranteed.

  19. Jawed

    Legend

    Joined:
    Oct 2, 2004
    Messages:
    10,873
    Likes Received:
    767
    Location:
    London
    I think 290X muddied the water because the default BIOS switch was "quiet" mode, i.e. throttle clocks at the merest hint of work. Non-reference coolers were fine.

    But I also think AMD changed things. After the original HD7970 (and pals), base clock disappeared and AMD only gives boost clock as you say.

    Titan X with its reference cooler is basically as bad as a reference 290X in quiet mode (87 versus 85% respectively):

    [​IMG]

    (from http://www.hardware.fr/articles/937-9/protocole-test.html ) There's a smaller set of results for 3840x2160, where Titan X gets worse.

    But where's the fuss about the Titan X?

    Original HD7970 doesn't throttle.

  20. pharma

    Veteran Regular

    Joined:
    Mar 29, 2004
    Messages:
    2,929
    Likes Received:
    1,626
    Rumor .... lol
    http://wccftech.com/amd-radeon-r9-n...fiji-gpu-4-gb-hbm-performance-faster-gtx-980/

    A1xLLcqAgt0qc2RyMz0y likes this.
