Direct3D feature levels discussion

Discussion in 'Rendering Technology and APIs' started by DmitryKo, Feb 20, 2015.

  1. DmitryKo

    Regular

    Joined:
    Feb 26, 2002
    Messages:
    694
    Likes Received:
    577
    Location:
    55°38′33″ N, 37°28′37″ E
    Trim the variable name to something like VPAndRTArrayIndexToRasterizerWithoutGSEmulation and strip ending Supported from the all other capability bits as well...

  2. pharma

    Veteran Regular

    Joined:
    Mar 29, 2004
    Messages:
    2,930
    Likes Received:
    1,626
    http://www.hardwareluxx.com/index.p...ture-to-offer-full-level-directx-support.html

  3. DmitryKo

    Regular

    Joined:
    Feb 26, 2002
    Messages:
    694
    Likes Received:
    577
    Location:
    55°38′33″ N, 37°28′37″ E

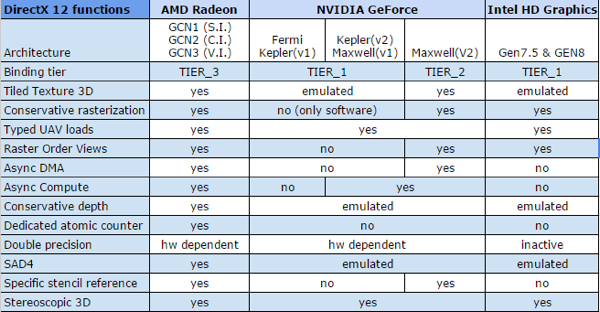

    This picture originates from a Brazilian forum and copies a table posted on a Hungarian forum with no attributed source of information (could as well be this thread on Anandtech forum).

    It's wrong on several important counts, for example: none of GCN chips support rasterizer ordered views, conservative rasterization, or tiled resources tier 3 (ie. "volume tiled resources" with Texture3D support), as shown by the D3D12 feature checking tool. GCN 1.1/1.2 cards support tiled resourced tier 2 (with Texture2D support) and feature level 12_0, GCN 1.0 "only" supports tiled resources tier 1 and feature level 11_1. Double precision floats are supported across the entire GCN range.

    Kepler and Maxwell-1 do support resource binding tier 2, and do not support typed UAV load for additional texture formats - this leaves them at feature level 11_0. Maxwell-2 is currently the only card which supports feature level 12_1.

    Conservative depth, SAD4 or dedicated atomic counter are not part of the latest SDK, neither is "emulated" tier 3 for tiled resources, whatever that means.


    As for the complete list of Direct3D 12 compatible GPUs and APUs, AMD revealed it on their blog nearly a month ago.

    #203 DmitryKo, Jun 2, 2015
    Last edited: Jun 3, 2015
    pharma likes this.
  4. Metal_Spirit

    Regular Newcomer

    Joined:
    Jan 3, 2007
    Messages:
    396
    Likes Received:
    183
    AMD's GCN does seem to support rasterizer order views!
    As already discussed raster ordered views is just a fancy way to rename Intel's pixelsync, and the feature's name in OpenGL is Intel_fragment_shader_ordering.

    Now check this Tweet from Nathan Reed!

    https://twitter.com/Reedbeta/status/478271158693801984

  5. willardjuice

    willardjuice super willyjuice
    Moderator Veteran Alpha Subscriber

    Joined:
    May 14, 2005
    Messages:
    1,373
    Likes Received:
    242
    Location:
    NY
    But is that extension usable? The performance on previous drivers made it impractical even for simple cases (if I remember Andrew correctly). I mean my cpu can support feature level 12_1 too, but that's not really saying much. :razz:

  6. Andrew Lauritzen

    Moderator Veteran

    Joined:
    May 21, 2004
    Messages:
    2,526
    Likes Received:
    454
    Location:
    British Columbia, Canada
    Yeah it was ridiculously bad when I briefly tested it... like turn it on even with a trivial pixel shader and no actual synchronization going on and your frame takes 300ms+. Hopefully that was just a bug or some sort of test implementation, but suffice it to say I'll believe they can support it efficiently when I see it :) Hopefully Fiji supports it natively in any case; the sooner ROV support is ubiquitous the sooner games can start relying on OIT and similar things that you can do with it without having to have engine fallbacks.

    And yeah, that table is utterly wrong on almost every count. You could probably invert all the values and it would be just as close to correct. Some of the things don't even really make sense as to what they are noting from an API point of view.

    #206 Andrew Lauritzen, Jun 3, 2015
    Last edited: Jun 3, 2015
  7. pharma

    Veteran Regular

    Joined:
    Mar 29, 2004
    Messages:
    2,930
    Likes Received:
    1,626
    http://www.pcper.com/reviews/Graphi...view-Matching-TITAN-X-650/DX12-Support-GameWo

    #207 pharma, Jun 3, 2015
    Last edited: Jun 3, 2015
  8. Metal_Spirit

    Regular Newcomer

    Joined:
    Jan 3, 2007
    Messages:
    396
    Likes Received:
    183
    Well, apparently, for what I see AMD does support ROV even if what you tested was very slow! And it was stated above GCN did not supported it!

    But honestly... i would doubt AMD (or any other) would show support for something if performances were that bad... So unless someone tells me otherwise I would be tempted to believe what you tested was premature? Any more recent testing?

    As for the atomic counter... Check this and this! Is it related?

  9. MDolenc

    Regular

    Joined:
    May 26, 2002
    Messages:
    690
    Likes Received:
    425
    Location:
    Slovenia
    It's not that he tested and it was slow. AMD Direct3D 12 driver at the moment does not report support for ROV. This means you can't use it period. This has nothing to do with OpenGL.

    Again this is OpenGL extension. Most of operations mentioned in this extension is already included in D3D 11. What that "dedicated atomic counter" is supposed to be we can't tell because it's not in D3D 12 specs.

  10. pharma

    Veteran Regular

    Joined:
    Mar 29, 2004
    Messages:
    2,930
    Likes Received:
    1,626
  11. willardjuice

    willardjuice super willyjuice
    Moderator Veteran Alpha Subscriber

    Joined:
    May 14, 2005
    Messages:
    1,373
    Likes Received:
    242
    Location:
    NY
  12. silent_guy

    Veteran Subscriber

    Joined:
    Mar 7, 2006
    Messages:
    3,754
    Likes Received:
    1,379
  13. Kaotik

    Kaotik Drunk Member
    Legend

    Joined:
    Apr 16, 2003
    Messages:
    8,185
    Likes Received:
    1,841
    Location:
    Finland
    Unless Fiji does 12_1 :wink:

  14. Locuza

    Newcomer

    Joined:
    Mar 28, 2015
    Messages:
    45
    Likes Received:
    101
    Which seems very unlikely and it's very unfortunate that AMD isn't contributing to an modern Feature-Level.
    Nvidia does since November 2014 and Intel at least supports ROVs.

  15. pharma

    Veteran Regular

    Joined:
    Mar 29, 2004
    Messages:
    2,930
    Likes Received:
    1,626
    If it does it will be for a very small user base ...

  16. silent_guy

    Veteran Subscriber

    Joined:
    Mar 7, 2006
    Messages:
    3,754
    Likes Received:
    1,379
    FWIW: I don't think supporting 12_1 or not don't matter a whole lot...

  17. Rikimaru

    Veteran Newcomer

    Joined:
    Mar 18, 2015
    Messages:
    1,014
    Likes Received:
    395
    Level 12_0 mostly leverages on GCN features. Nvidia cards before Maxwell 2 will emulate some features in software.

    12.1 was created for Maxwell 2. Of course AMD is behind on those.

  18. pjbliverpool

    pjbliverpool B3D Scallywag
    Legend

    Joined:
    May 8, 2005
    Messages:
    7,583
    Likes Received:
    703
    Location:
    Guess...
    sebbbi has had lots of high praise for the 12_1 features. I don't think this is a DX9.3 situation.

    pharma likes this.
  19. Ethatron

    Regular Subscriber

    Joined:
    Jan 24, 2010
    Messages:
    859
    Likes Received:
    262
    silent_guy used tripple negation (well, 2.5 really). Intentional? I don't think this isn't no DX9.3 situation. LOL

    Lightman likes this.
  20. silent_guy

    Veteran Subscriber

    Joined:
    Mar 7, 2006
    Messages:
    3,754
    Likes Received:
    1,379
    "I think it doesn't matter a great deal. " better? :wink:

    Not that sebbi is wrong about it being very useful, but there's a difference between useful and necessary. I assume most games will do things the hard way...
