Carmack's comments on NV30 vs R300, DOOM developments

Coz he makes engines that sells that other developers use to make games?



Compare these code snippets from my Shadows that don't suck demo:

Code:

GLuint shaderID = glGenFragmentShadersATI(1);
glBindFragmentShaderATI(shaderID);
glBeginFragmentShaderATI();
	GLfloat offset[] = { 0.02f, 0.02f, 0.02f, 0.02f };
	glSetFragmentShaderConstantATI(GL_CON_0_ATI, offset);

	glSampleMapATI(GL_REG_0_ATI, GL_TEXTURE0_ARB, GL_SWIZZLE_STR_ATI);
	glSampleMapATI(GL_REG_1_ATI, GL_TEXTURE1_ARB, GL_SWIZZLE_STQ_ATI);
	glSampleMapATI(GL_REG_2_ATI, GL_TEXTURE2_ARB, GL_SWIZZLE_STR_ATI);
	glSampleMapATI(GL_REG_3_ATI, GL_TEXTURE3_ARB, GL_SWIZZLE_STR_ATI);

	glColorFragmentOp2ATI(GL_DOT3_ATI, GL_REG_0_ATI, GL_NONE, GL_SATURATE_BIT_ATI, GL_REG_0_ATI, GL_NONE, GL_2X_BIT_ATI | GL_BIAS_BIT_ATI, GL_REG_1_ATI, GL_NONE, GL_2X_BIT_ATI | GL_BIAS_BIT_ATI);
	glColorFragmentOp2ATI(GL_SUB_ATI,  GL_REG_2_ATI, GL_NONE, GL_NONE, GL_REG_2_ATI, GL_NONE, GL_NONE, GL_REG_3_ATI, GL_NONE, GL_NONE);
	glColorFragmentOp2ATI(GL_MUL_ATI,  GL_REG_0_ATI, GL_NONE, GL_NONE, GL_REG_0_ATI, GL_NONE, GL_NONE, GL_PRIMARY_COLOR_ARB, GL_NONE, GL_NONE);
	glColorFragmentOp2ATI(GL_ADD_ATI,  GL_REG_2_ATI, GL_NONE, GL_NONE, GL_REG_2_ATI, GL_NONE, GL_NONE, GL_CON_0_ATI, GL_NONE, GL_NONE);
	glColorFragmentOp3ATI(GL_CND0_ATI, GL_REG_0_ATI, GL_NONE, GL_NONE, GL_REG_0_ATI, GL_NONE, GL_NONE, GL_ZERO,      GL_NONE, GL_NONE, GL_REG_2_ATI, GL_NONE, GL_NONE);

glEndFragmentShaderATI();


----------------------------------------------------


GLuint shaderID = glGenLists(1);
glNewList(shaderID, GL_COMPILE);

	glCombinerParameteriNV(GL_NUM_GENERAL_COMBINERS_NV, 4);

	glCombinerInputNV(GL_COMBINER0_NV,  GL_RGB, GL_VARIABLE_A_NV, GL_TEXTURE0_ARB, GL_EXPAND_NORMAL_NV, GL_RGB);
	glCombinerInputNV(GL_COMBINER0_NV,  GL_RGB, GL_VARIABLE_B_NV, GL_TEXTURE1_ARB, GL_EXPAND_NORMAL_NV, GL_RGB);
	glCombinerOutputNV(GL_COMBINER0_NV, GL_RGB, GL_TEXTURE0_ARB, GL_DISCARD_NV, GL_DISCARD_NV, GL_NONE, GL_NONE, GL_TRUE, GL_FALSE, GL_FALSE);

	glCombinerInputNV(GL_COMBINER1_NV,  GL_RGB, GL_VARIABLE_A_NV, GL_TEXTURE2_ARB, GL_SIGNED_IDENTITY_NV, GL_RGB);
	glCombinerInputNV(GL_COMBINER1_NV,  GL_RGB, GL_VARIABLE_B_NV, GL_ZERO,         GL_UNSIGNED_INVERT_NV, GL_RGB);
	glCombinerInputNV(GL_COMBINER1_NV,  GL_RGB, GL_VARIABLE_C_NV, GL_TEXTURE3_ARB, GL_SIGNED_NEGATE_NV,   GL_RGB);
	glCombinerInputNV(GL_COMBINER1_NV,  GL_RGB, GL_VARIABLE_D_NV, GL_ZERO,         GL_UNSIGNED_INVERT_NV, GL_RGB);
	glCombinerOutputNV(GL_COMBINER1_NV, GL_RGB, GL_DISCARD_NV, GL_DISCARD_NV, GL_TEXTURE2_ARB, GL_NONE, GL_NONE, GL_FALSE, GL_FALSE, GL_FALSE);

	GLfloat offset[] = { 0.52f, 0.52f, 0.52f, 0.52f };
	glCombinerParameterfvNV(GL_CONSTANT_COLOR0_NV, offset);
	glCombinerInputNV(GL_COMBINER2_NV,  GL_ALPHA, GL_VARIABLE_A_NV, GL_TEXTURE2_ARB,       GL_SIGNED_IDENTITY_NV, GL_BLUE);
	glCombinerInputNV(GL_COMBINER2_NV,  GL_ALPHA, GL_VARIABLE_B_NV, GL_ZERO,               GL_UNSIGNED_INVERT_NV, GL_BLUE);
	glCombinerInputNV(GL_COMBINER2_NV,  GL_ALPHA, GL_VARIABLE_C_NV, GL_CONSTANT_COLOR0_NV, GL_SIGNED_IDENTITY_NV, GL_BLUE);
	glCombinerInputNV(GL_COMBINER2_NV,  GL_ALPHA, GL_VARIABLE_D_NV, GL_ZERO,               GL_UNSIGNED_INVERT_NV, GL_BLUE);
	glCombinerOutputNV(GL_COMBINER2_NV, GL_ALPHA, GL_DISCARD_NV, GL_DISCARD_NV, GL_SPARE0_NV, GL_NONE, GL_NONE, GL_FALSE, GL_FALSE, GL_FALSE);

	glCombinerInputNV(GL_COMBINER3_NV,  GL_RGB, GL_VARIABLE_A_NV, GL_ZERO,             GL_SIGNED_IDENTITY_NV, GL_RGB);
	glCombinerInputNV(GL_COMBINER3_NV,  GL_RGB, GL_VARIABLE_B_NV, GL_ZERO,             GL_SIGNED_IDENTITY_NV, GL_RGB);
	glCombinerInputNV(GL_COMBINER3_NV,  GL_RGB, GL_VARIABLE_C_NV, GL_TEXTURE0_ARB,     GL_UNSIGNED_IDENTITY_NV, GL_RGB);
	glCombinerInputNV(GL_COMBINER3_NV,  GL_RGB, GL_VARIABLE_D_NV, GL_PRIMARY_COLOR_NV, GL_UNSIGNED_IDENTITY_NV, GL_RGB);
	glCombinerOutputNV(GL_COMBINER3_NV, GL_RGB, GL_DISCARD_NV, GL_DISCARD_NV, GL_SPARE0_NV,   GL_NONE, GL_NONE, GL_FALSE, GL_FALSE, GL_TRUE);

	glFinalCombinerInputNV(GL_VARIABLE_A_NV, GL_ZERO,      GL_UNSIGNED_IDENTITY_NV, GL_RGB);
	glFinalCombinerInputNV(GL_VARIABLE_B_NV, GL_ZERO,      GL_UNSIGNED_IDENTITY_NV, GL_RGB);
	glFinalCombinerInputNV(GL_VARIABLE_C_NV, GL_ZERO,      GL_UNSIGNED_IDENTITY_NV, GL_RGB);
	glFinalCombinerInputNV(GL_VARIABLE_D_NV, GL_SPARE0_NV, GL_UNSIGNED_IDENTITY_NV, GL_RGB);

glEndList();

These two both do the same thing, now tell me which one looks more confusing.



Both



Quite impressive...



Humus just gave an excellent example of why some people prefer DirectX.



I guess that's why NVidia created the NVParse tool.



Um, but those are using the register combiners? I thought I was talking about the pixel shader/vertex program extensions?



Well, I could compare vs2.0/ps2.0 vs. GL_ARB_vertex_program/GL_ARB_fragment_program where OpenGL is way simplier to deal with.



Well, if that's confusing then I suppose you haven't worked with pixel shaders in OpenGL.

GL_NV_register_combiners == nVidias pixel shaders in OpenGL.

Or do you know any other pixel shading extensions that runs on GF3? It's GL_NV_register_combiners + GL_NV_texture_shader that defines nVidia's pixel shader. The ALU stuff is in the combiners and dependent texture reads and similar is in the texture_shader. And that's it. So yes, nVidia's pixels shading extensions for sub-GFFX cards are much more confusing.



He'd want to develop and see his game running as best as possible, so he'd for sure use what's been the best card commercially available for the last 6 mo. and also code with it in mind (though not exclusively).



Both of those extensions suck, because building up a program or expression procedurally sucks. A syntactic interface is much better, concise, and easier to read.

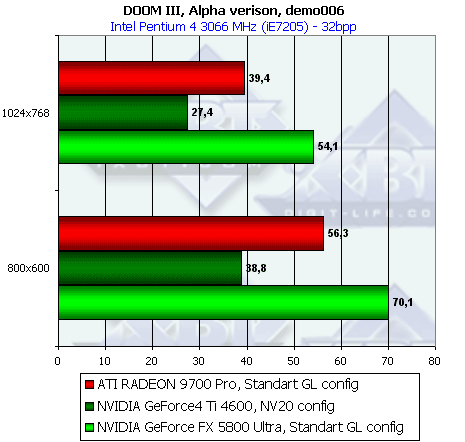

We have at least some information on the performance of each card using the leaked demo



Will be interesting to see if the ARB2 path improvements JC has mentioned lately affects those scores...

Its one of the reasons using alpha builds of games for published performance benches seems arse-backwards to me. They won't reflect performance on the release game...
