DX11 DirectCompute Buddhabrot Demo

Interesting. It's basically a scattered read-modify-write test.

I assume Fermi would have a big lead in this, and it could be colossal if you render at a low enough resolution to fit in the L2.



Getting around 85-90 fps on my 5870, on the website itself he says he's only getting around 45 fps on a 5870 I'm guessing there is something wrong with his card



Same here

Pretty pictures I must say! CPU is quite slow in this ...



Hi, thanks for DLing my Buddhabrot program. I wrote a summary of the implementation on my blog.

http://www.yakiimo3d.com/2010/03/29/dx11-directcompute-buddhabrot-nebulabrot/

Both GPU and CPU implementation are non-optimized. CPU implementation is non-SIMD, non-multithreaded. Buddhabrot is a simple extension of the Mandelbrot fractal, but unlike the Mandelbrot which is pure computation, the Buddhabrot uses an output increment buffer in order to plot the path of the escape of a complex number not in the Mandelbrot set and extensive scattered memory writes (specifically IterlockedAdd atomic ops to an integer UAV buffer) are performed on global memory.

Worst case in sample program is 9999+999+99 writes (those are iteration maxes-1 for each rgb color) per compute shader thread, but I'm guessing actual write is much lower. I guess the program demonstrates that scattered memory writes to global memory is somewhat slow for GPGPU (since Mandelbrot program are like 50x+ times faster than single-threaded, non-SIMD CPU programs.) I don't really see way to involve shared local memory for the Buddhabrot either and that's why I don't use it.



Yeah, I've noticed the same.

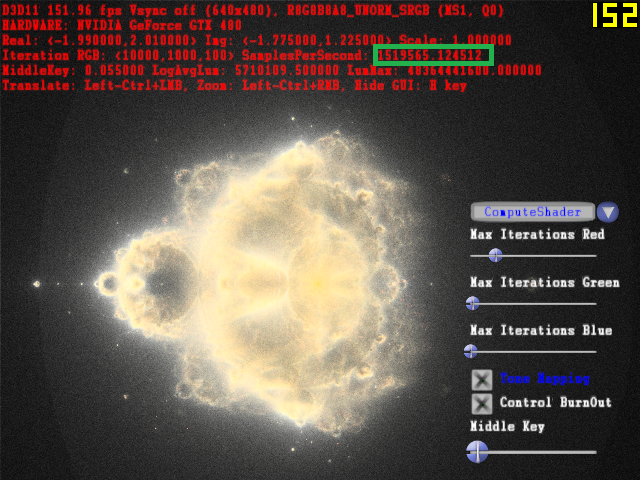

Anyway: GTX 480 gets about 142is Fps in default settings for Buddabrot.



Almost twice as fast as HD5870! Nice



I had a look at the source and did a few things to optimize performance for a 5870, going from about 80 fps to 140 fps or so.

The first thing I did was to try to improve the performance of the Iterate() function by changing the way the dynamic loop is done in BuddhabrotCS.hlsl:

Original code:

Code:

	for( int nIteration=0; nIteration<nMaxIteration; ++nIteration )
	{
		float zRe2 = zRe*zRe;
		float zIm2 = zIm*zIm;

		/// check whether absolute value of z has gotten bigger than 2
		if( zRe2 + zIm2 > 4.0 ) {
			return nIteration;
		}

		// calculate next z(n)
		zIm = 2.0*zRe*zIm + cIm;
		zRe = zRe2 - zIm2 + cRe;
	}

	// complex number did not escape to infinity
	return nMaxIteration;

New code:

Code:

    // Doing the loop this way improves performance for an equivalent result
    int nIteration=0;
    float zRe2 = zRe*zRe;
    float zIm2 = zIm*zIm;
    while (nIteration<nMaxIteration && (zRe2 + zIm2 <= 4.0) )
    {
		// calculate next z(n)
		zIm = 2.0*zRe*zIm + cIm;
		zRe = zRe2 - zIm2 + cRe;

		zRe2 = zRe*zRe;
		zIm2 = zIm*zIm;

		nIteration++;
	}

    return nIteration;

Then I tried to simplify the code in the IterateAndPlot() function as it was quite branching-heavy, which is usually not a good thing as it can impact vectorization on ATI GPUs, and also it can consumes precious GPRs.

Original code:

Code:

if( nX >=0 && nY >=0 && nX < nWidth && nY < nHeight )
{
	int nIndex = nX + nWidth*nY;

	if( nIteration < maxIterationsR ) {
		InterlockedAdd( iterationsBuffer[ nIndex ].x, 1 );
	}
	if( nIteration < maxIterationsG ) {
		InterlockedAdd( iterationsBuffer[ nIndex ].y, 1 );
	}
	if( nIteration < maxIterationsB ) {
		InterlockedAdd( iterationsBuffer[ nIndex ].z, 1 );
	}
}

New code:

Code:

int nScissorTestSucceed = ( nX >=0 && nY >=0 && nX < nWidth && nY < nHeight );

int nIndex = nX + nWidth*nY;

InterlockedAdd( iterationsBuffer[ nIndex ].x, nScissorTestSucceed * ( nIteration < maxIterationsR ) );
InterlockedAdd( iterationsBuffer[ nIndex ].y, nScissorTestSucceed * ( nIteration < maxIterationsG ) );
InterlockedAdd( iterationsBuffer[ nIndex ].z, nScissorTestSucceed * ( nIteration < maxIterationsB ) );

Finally I chose a thread group size that is a nice multiple of the ATI's Cypress wavefront size (64). So instead of declaring [numthreads(10,10,1)] before the BuddhabrotCS() function I declared [numthreads(16,16,1)], and I modified the Dispatch() code in BuddhabrotCS.hlsl line 134 accordingly by going from:

pd3dImmediateContext->Dispatch( (m_nInputWidth)/10, (m_nInputHeight)/10, 1 );

to:

pd3dImmediateContext->Dispatch( (m_nInputWidth)/16, (m_nInputHeight)/16, 1 );


All in all these optimizations gave me a 50%+ increase in performance on my Cypress card. Note that ideal values for thread group can vary from GPU to GPU so the ideal setting may be different for your card.
Despite these optimizations the ALU utilization is still not great on Cypress cards (50% or so) so it will be hard to achieve a theoretical maximum with such algorithms, unless they're modified to take advantage of vectorization.



Impressive Nice example of thinking outside the box.



SuperCow, arrescate!



Sorry, was a typo. This should have read:

I modified the Dispatch() code in BuddhabrotCS.cpp line 134 accordingly by going from:

pd3dImmediateContext->Dispatch( (m_nInputWidth)/10, (m_nInputHeight)/10, 1 );

to:

pd3dImmediateContext->Dispatch( (m_nInputWidth)/16, (m_nInputHeight)/16, 1 );



To the rescue?



I was wondering the same thing myself



I tried to vectorize it by cutting the screen by half and compute both half in one run:

Code:

	float2 random = randomInput.Load( uint3(DTid.x, DTid.y, 0) ).xy;
	float2 zRe;
	float2 zIm;
	zRe.x = random.x;
	zIm.x = random.y;
	random = randomInput.Load( uint3(DTid.x + nInputWidth / 2, DTid.y, 0) ).xy;
	zRe.y = random.x;
	zIm.y = random.y;

Then I vectorize the function Iterate:

Code:

int2 Iterate2( float2 zRe, float2 zIm )
{
	float2 cRe = zRe;
	float2 cIm = zIm;

    // Doing the loop this way improves performance for an equivalent result
    int2 nIteration=int2(0, 0);
    float2 zRe2 = zRe*zRe;
    float2 zIm2 = zIm*zIm;
    int2 cond = (sign(nIteration - nMaxIteration) & sign(-step(zRe2 + zIm2, float2(4.0, 4.0))));
    while (any(cond))
    {
		// calculate next z(n)
		zIm = float2(2.0, 2.0)*zRe*zIm + cIm;
		zRe = zRe2 - zIm2 + cRe;

		zRe2 = zRe*zRe;
		zIm2 = zIm*zIm;

		nIteration += -cond;

		cond = (sign(nIteration - nMaxIteration) & sign(-step(zRe2 + zIm2, float2(4.0, 4.0))));
	}

    return nIteration;
}

I also tried to vectorize IterateAndPlot but it's not successful, so the main function looks like:

Code:

[numthreads(16, 16, 1)]
void BuddhabrotCS( uint3 Gid : SV_GroupID, uint3 DTid : SV_DispatchThreadID, uint3 GTid : SV_GroupThreadID, uint GI : SV_GroupIndex )
{
	float x = DTid.x;
	float y = DTid.y;

	int nInputIndex = DTid.x+DTid.y*nInputWidth;

	float2 random = randomInput.Load( uint3(DTid.x, DTid.y, 0) ).xy;
	float2 zRe;
	float2 zIm;
	zRe.x = random.x;
	zIm.x = random.y;
	random = randomInput.Load( uint3(DTid.x + nInputWidth / 2, DTid.y, 0) ).xy;
	zRe.y = random.x;
	zIm.y = random.y;

	// check whether sample complex number is in the mandelbrot set.
	int2 nIterationEscape;
	nIterationEscape  = Iterate2(zRe, zIm);

	if(nIterationEscape.x != nMaxIteration) {
		IterateAndPlot( zRe.x, zIm.x, nOutputWidth, nOutputHeight, nIterationEscape.x );
	}

	if(nIterationEscape.y != nMaxIteration) {
		IterateAndPlot( zRe.y, zIm.y, nOutputWidth, nOutputHeight, nIterationEscape.y );
	}
}

then in BuddhabrotCS.cpp:

Code:

	// run compute shader
	pd3dImmediateContext->Dispatch( (m_nInputWidth)/32, (m_nInputHeight)/16, 1 );

because only half amount of kernels is required.

By doing this, the fps goes from around 125fps to around 147 fps on my Radeon 5850. I think that if one optimizes Iterate function further it could be even faster.

Vectorize Iterate to 4D is not faster than the original version, though.



I'm surprised that you two were able to optimize so much because I thought it was scatter write limited. Four memory channels can only do 1.2 billion random read-modify-writes per second, right? Cypress' ALUs can execute 200 times as many vec5 cycles per second. AFAICS, the algorithm does two Mandelbrot iterations per InterlockedAdd.



I think you are right, it's scatter write limited. That's probably the reason why vectorize the "IterateAndPlot" function does not work well, because the vectorized version tries to do two sets of InterlockedAdd at once (although there are three InterlockedAdd in the original kernel, they write to adjacent addresses so it's fine). By writing two sets at once, the GPU is not able to insert more computations in the pipeline, therefore more pipeline stalls.

Vectorizing Iterate function works because it has no InterlockedAdd, so the execution flow is something like:

[full Mandelbrot computation] + [one step of Mandelbrot] + [InterlockedAdd] + [one step of Mandelbrot] + [InterlockedAdd] ...

Since one step of Mandelbrot is not enough to cover the pipeline stall cased by InterlockedAdd, optimizing the full Mandelbrot computation (which has probably still more computation than the pipeline stall cased by InterlockedAdd because the max iteration is 10000) works. Of course, this is just my speculation.

If this is correct, then maybe a better optimization idea is try to mix the IterateAndPlot function with another full Mandelbrot computation in order to cover as much as pipeline stall as possible. For example, right now a kernel runs only one sample (or two samples in the vectorized version). It should be modified to handle tens or hundreds of samples, and when plotting the path of the first sample, it would compute the full Mandelbrot of the second sample, and so on. Then hopefully the cost of the full Mandelbrot can be hidden by the IterateAndPlot function.
